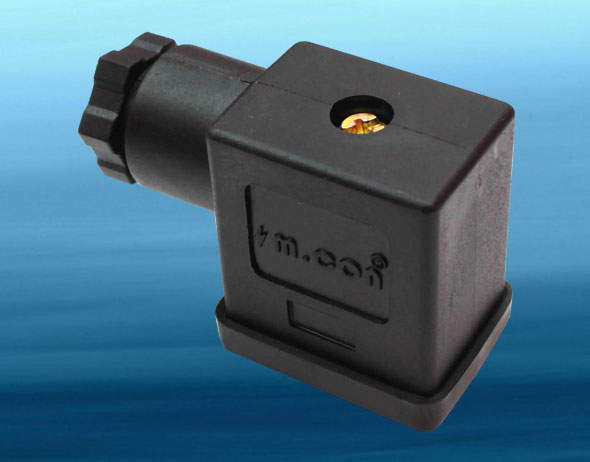

Slim Socket PG 9
S-112/9 = PG-9-2Pole + Earth
S-112/7 = PG-7-2Pole + Earth
(Colour Black/Grey)
TECHNICAL SPECIFICATION
| TECHNICAL SPECIFICATION |
|
| Contact Distance |
11 mm |
Insulation Class |
AS PER VDE 0110-1/89 |
| Nominal Voltage |
|
Contact Mat. |
Phosphor bronze |
| AC |
Max.250V |
|
Silver Plated |
| DC |
Max.300V |
Square Barrel |
Brass, Silver Plated |
| Nominal Current |
10A |
H.V.Breakdown Test |
2KV AC for 1 min. |
| Operation Current |
16A |
Gasket Material (Opt.) |
Operating Temp. |
| Contact Resistance |
Max.20 m Ohms |
Nitrile/TPE |
-40oC + 90oC |
| MAX.Conduc.Cross-Sect |
1.5mm2 |
Silicon |
-40oC + 125oC |
| Body Material |
Nylon (GF) |
Product Weight |
21.00 gm |
| Cable (OD) PG9 |
4.5 - 7mm |
Packing |
25 Nos. with fixing Screw & Gsk. |
| Cable (OD) PG7 |
4 - 6mm |
Carton Packing Domestic |
500 Nos (25x20 packets) |
| Protection Class |
IP 65 EN60529 |
Carton Packing Export |
1000 Nos (25x40 packets) |

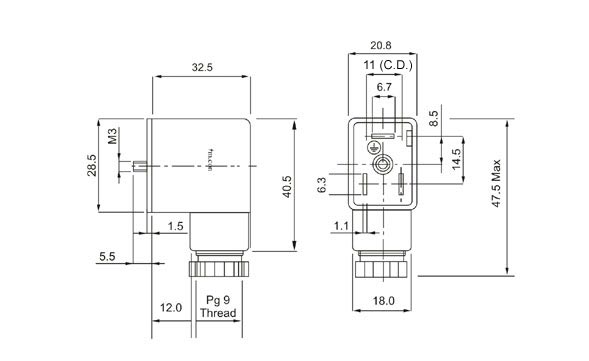

TECHNICAL DIAGRAM
