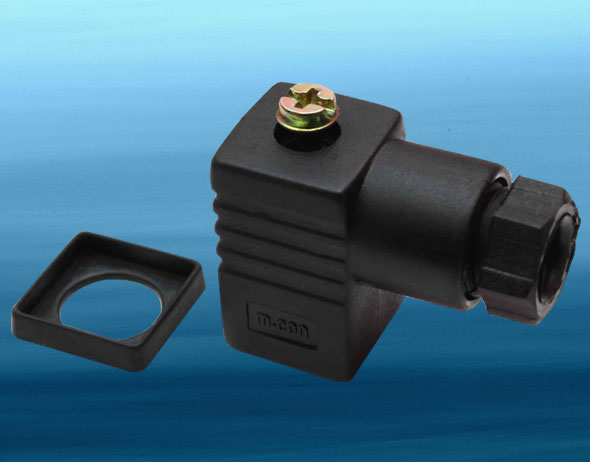

Socket Micro PG7
M-0942/7 =PG-7-2Pole + Earth
M-0943/7 =PG-7-3Pole + Earth
(Colour Black / Grey)
TECHNICAL SPECIFICATION
| TECHNICAL SPECIFICATION |
|
| Contact Distance |
09.4 mm |
Protection Class |
IP 65 En60529 |
| Nominal Voltage |
|
Insulation Class |
AS PER VDE 0110-1/89 |
| AC |
Max.250V |
Contact Mat. |
Phosphor bronze |
| DC |
Max.300V |
|
Silver Plated |
| Nominal Current |
06A |
Square Barrel |
Brass, Silver Plated |
| Operation Current |
10A |
Gasket Material (Opt.) |
Operating Temp. |
| Contact Resistance |
4 m Ohms |
Nitrile/TPE |
-40oC + 90oC |
| MAX.Conduc.Cross-Sect |
0.75mm2 |
Silicon |
-40oC + 125oC |
| Body Material |
PA (+G) |
Product Weight |
14.00 gm |
| Cable (OD) PG7 |
4 - 6mm |
Packing |
50 Nos. with fixing Screw & Gsk. |

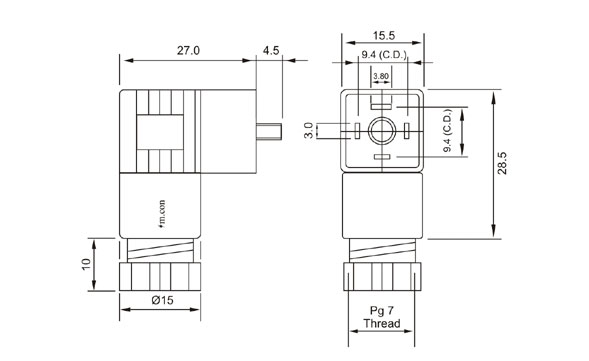

TECHNICAL DIAGRAM
