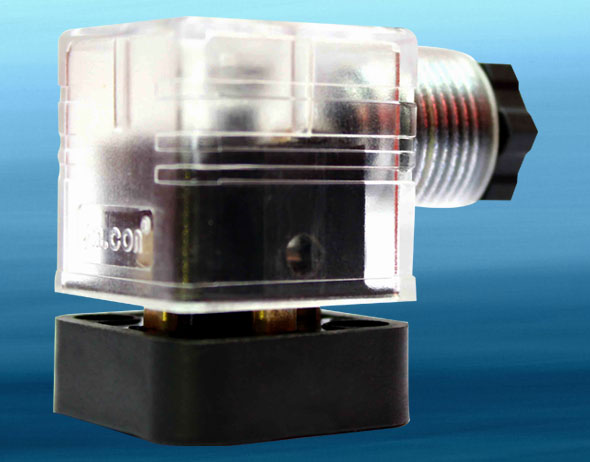

Plug with Socket Fitting

TECHNICAL SPECIFICATION

TECHNICAL SPECIFICATION
Pin  Distance 18 mm Body Material  PA (+G)
Nominal Voltage   Adapting Plug Form “A”
AC Max.250V Gasket Material (Opt.) Operating Temp.
DC Max.300V Nitrile/TPE -40oC + 90oC
Nominal Current 10A Silicon -40oC + 125oC
Contact Resistance Max.20 m Ohms Product Weight 10.00 gm
MAX.Conduc.Cross-Sect 01.0 mm2 Packing             25 Nos. with fixing Screw & Gsk.
